Kona Ecoco w/Shimano
$2,350.00
Details

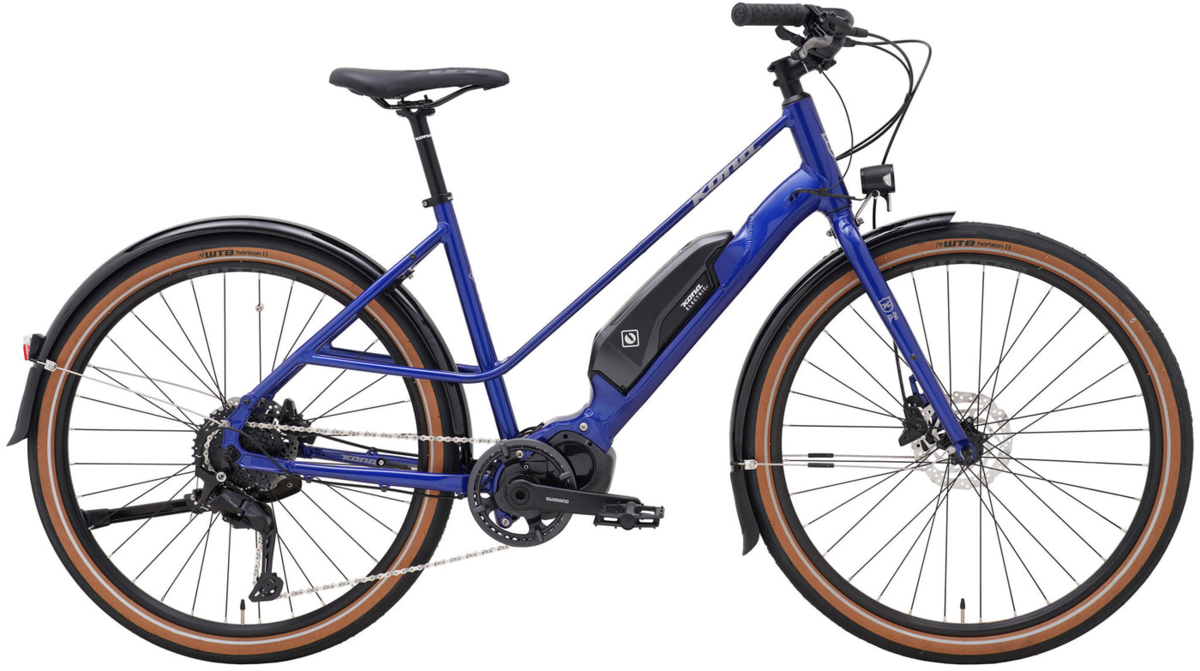

The Ecoco has been spotted alongside trendsetters all over the world. It makes running errands fun. It’s the perfect boardwalk beach cruiser and it doesn’t have to worry about fitting into a bathing suit. Its eye-catching paint on its low-slung step-through frame is a showstopper, and its Shimano E6100 motor ensures that you’ll make it to the top of that big hill in time to watch every single sunset. Dependable shifting and disc brakes will keep all the moving parts running smoothly. It comes with fenders, front and rear lights, and a kickstand. The only thing needed, is you!

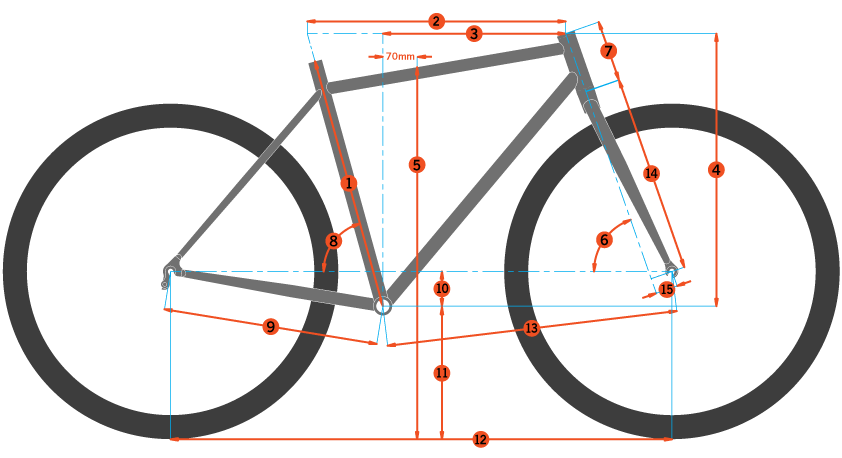

| Size | S | M | L | |
|---|---|---|---|---|
| 1 | ST Length | 420 | 470 | 520 |
| 2 | TT Length | 551 | 596 | 635 |
| 3 | Reach | 397 | 422 | 438 |
| 4 | Stack | 573 | 606 | 644 |
| 5 | Standover | 584 | 584 | 591 |
| 6 | HT Angle | 70 | 70 | 70 |
| 7 | HT Length | 140 | 175 | 215 |
| 8 | ST Angle | 75 | 74 | 73 |
| 9 | CS Length | 450 | 450 | 450 |
| 10 | BB Drop | 70 | 70 | 70 |
| 11 | BB Height | 272 | 272 | 272 |
| 12 | Wheelbase | 1078 | 1115 | 1144 |
| 13 | Front Center | 637 | 674 | 703 |
| 14 | Fork Length | 409 | 409 | 409 |
| 15 | Fork Offset | 50 | 50 | 50 |
| Height/Inches | Height/Metric | Inseam/Inches | Inseam/Metric | Rove | Libre | Sutra/Ouroboros | Dews | CoCo |
|---|---|---|---|---|---|---|---|---|
| 4'10"-5'1" | 147-155cm | 24”-27” | 61-69cm | 48cm | 50cm | 48cm | N/A | XS |
| 5'0"-5'3" | 152-160cm | 26"-29" | 66-74cm | 48-50cm | 50cm | 48-50cm | Small | Small |
| 5'2"-5'7" | 157-170cm | 27"-30" | 69-76cm | 48-52cm | 50-52cm | 48-52cm | Small, Medium | Small, Medium |
| 5'6"-5'10" | 168-178cm | 29"-31" | 74-79cm | 52-54cm | 52-54cm | 52-54cm | Medium | Medium |
| 5'9"-6'0" | 175-183cm | 30"-33" | 76-84cm | 52-56cm | 54-56cm | 54-56cm | Medium, Large | Medium, Large |
| 5'11"-6'2" | 180-188cm | 32"-35" | 81-89cm | 54-58cm | 54-58cm | 54-58cm | Large, XL | Large |
| 6'1"-6'5" | 185-196cm | 33"-36" | 84-91cm | 56-58cm | 58cm | 56-58cm | XL | N/A |
Specs
| Frame | Kona 6061 Aluminum Butted |
|---|---|
| Fork | Kona Project Two Aluminum Disc |
| Rims | WTB SX19 |
| Hubs | Front Hub: Shimano 100x9mm, Rear Hub: Shimano 135x10mm |
| Spokes | Stainless 14g |
| Tires | WTB Horizon Comp Puncture Protect 650x47c |
| Crankset | Shimano E6100 |
| Chainrings | 38t |
| Rear Derailleur | Shimano Cues |
| Cassette/Freewheel | Shimano Cues 11-36t 9spd |
| Chain | KMC Eglide |
| Brakes | Shimano MT410 |
| Rotors | Shimano RT10 160mm (centerlock) |
| Brake Levers | Shimano MT401 |
| Handlebars | Kona Handplant |
| Tape/Grips | Kona Key Grip Slip on |
| Stem | Kona Control |
| Headset | Feimin H863 |
| Seatpost | Kona Commuter 27.2mm |
| Saddle | Kona Comfort |
| Pedals | Kona JS2 |
| Accessories & Extras | BatteryLock: Abus, Fenders, Front & Rear Light, Kickstand |
| Motor | Shimano E6100 20MPH |
| Battery | Shimano 504Wh |
| Controller/Display | Shimano SC-E7000 Display |
| Charger | Shimano STEPS 2A |
* Subject to change without notice.
Videos
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Gloss Metallic Lazuli Blue w/ Satin Silver Reflect / Small / 650B | 841073185269 | B36ECOBLSHIN01 | 210000005519 |
